Product Brief Introduction:

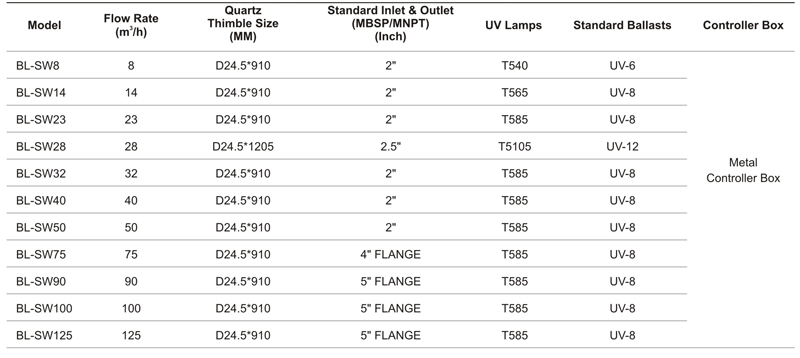

◎ Model  number  and  flow  rate:  please  refer  to  Product Specification Sheet .

◎ 304 Stainless steel (316L optional), polished and passivated.

◎ Lamp life:9000 hours of operation, approximate 12 months of continuous service .

◎ Ballasts: UL, CUL, TUV-CE SAA certification, LED visual & audible alarm, Overheating protection, Instant start.

◎ Maximum working pressure: 100 PSI. ◎ Voltage:  100-240V, 50-60Hz.

◎ Recommended ambient temperature in degrees C (Degrees F): 2- 40 ºC (36-104 ºF)

◎ General installation conditions and needs: Avoid touching the sides of the quartz sleeve and lamp, handle by the ends only. Ultraviolet lamp and quartz sleeve are easily damaged.

◎ General operation and  maintenance: Quartz sleeve  is to  be cleaned  every  6-12  months  and  to   be replaced  every  24 months. UV lamp is to be replaced every year.

Applications:

◎ SPAS  Hot Spring

◎ Private Swimming Pools

◎ Landscape Water System

◎ Fish Ponds
